High alumina brick is mainly used for lining of blast furnace, hot blast furnace, electric furnace roof, reverberatory furnace and rotary kiln. In addition, high alumina brick also widely used as open hearth regenerative lattice brick, pouring system with plug,such as nozzle brick.
Item NO.:
YYH-012Payment:
T/TProduct Origin:
CHINALead Time:

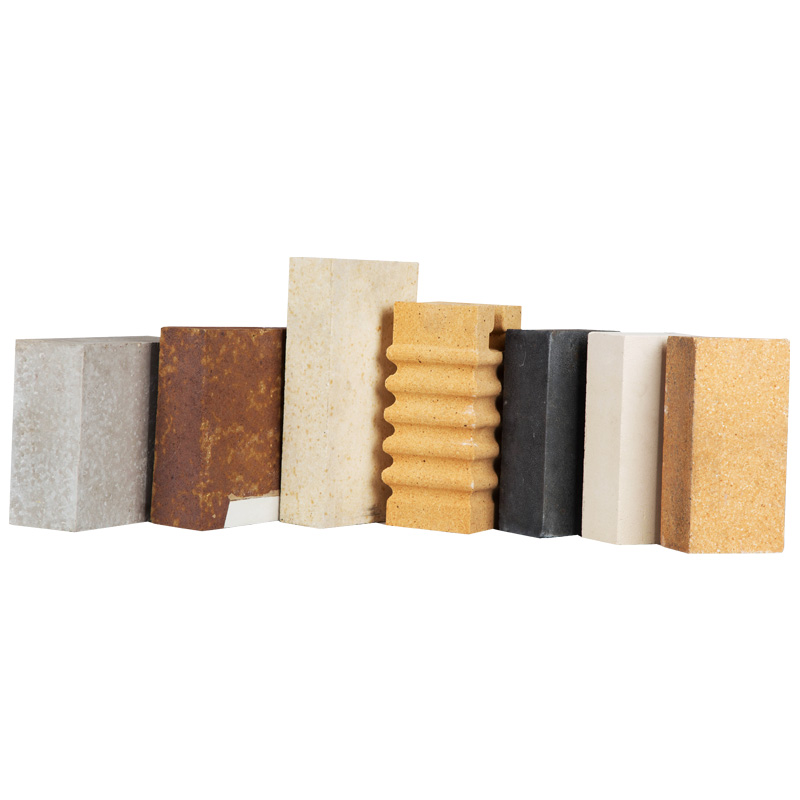

7-15High alumina brick is made of alumina, fused alumina, fused mullite as the main raw materials of shaped refractory products, the main component is Al2O3.High alumina brick products have the advantages of small temperature creep, strong corrosion resistance and good thermal shock stability.
Refractory Fire Bricks Feature
1.Low coefficient of linear expansion
2.Low thermal conductivity,
3.Strong resistance to the acid slag erosion,
4.Excellent thermal shock resistance,
5.High Refractoriness under load,
6.Low high-temperature creep rate.
|
SK series |
SK30 |
SK32 |
SK34 |
SK35 |
|
Al2O3 |
30%-35% |
35%-38% |
38%-42% |
42%-50% |
|
Item |
33% Al2O3 fire clay brick |
38% Al2O3 fire clay brick |
42% Al2O3 fire clay brick |
48% Al2O3 fire clay brick |
|
Al2O3 |
33% |
38% |
42% |
48% |
|
Fe2O3/% |
≤3 |
≤3 |
≤3 |
≤2.5 |
|
Refractoriness |
≥1690 °C |
≥1730 °C |
≥1750 °C |
≥1750 °C |
|
Bulk density /g/cm3 |
1.9-2.0 |
2.0-2.1 |
2.1-2.18 |
2.15-2.3 |
|
Unit weight (230*114*65mm) |
≥3.35KGS |
≥3.55KGS |
3.65KGS |
≥3.75KGS |
|
Apparent porosity/% |
≤26 |
≤24 |
≤24 |
≤22 |
|
Cold crushing strength |
≥20Mpa |
≥25Mpa |
≥30Mpa |
≥35Mpa |
|
Refractoriness under load |
≥1250 °C |
≥1300 °C |
≥1350 °C |
≥1420 °C |
|
Reheating Linear Change/% |
0~ -0.5 (1350°C,2h) |
0~ -0.3 (1350°C,2h) |
0~ -0.4 (1350°C,2h) |
0~ -0.4 (1350°C,2h) |
High alumina brick is mainly used for lining of blast furnace, hot blast furnace, electric furnace roof, reverberatory furnace and rotary kiln. In addition, high alumina brick also widely used as open hearth regenerative lattice brick, pouring system with plug,such as nozzle brick.
Gongyi Yuying Refractory Co., Ltd is a professional engaged in refractory brick, castable, refractory ceramic products research and development, production, sales as one of the manufacturers. The company has a series of products including refractory castable, stamping refractory, molded refractory, forming refractory brick, thermal insulation materials and ceramic products.

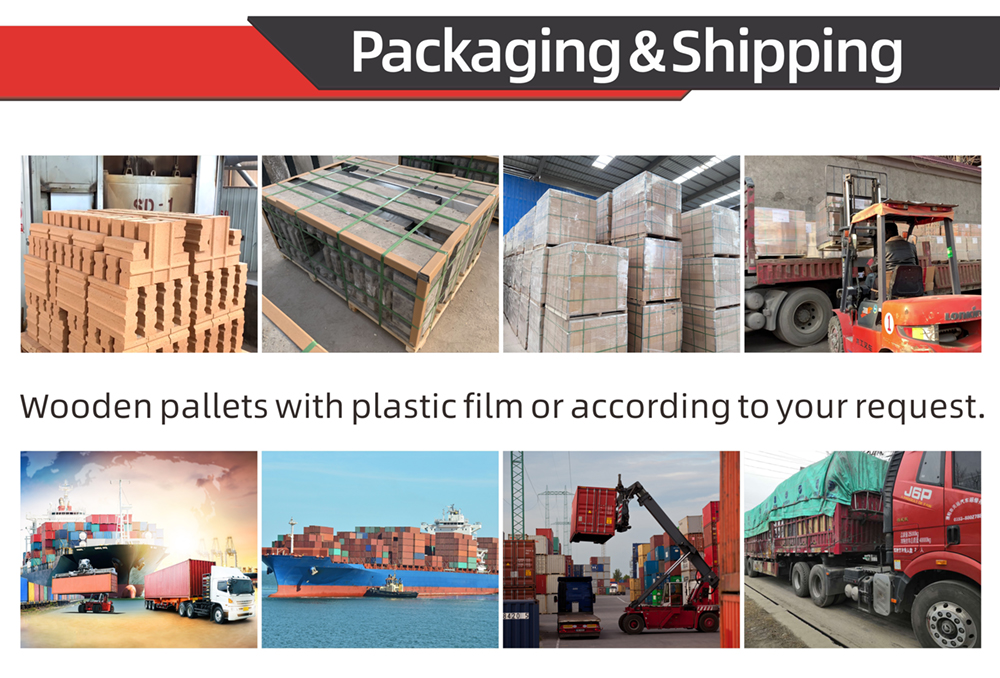

High alumina brick manufacturer according to your requirements shipping :
1.20GP FCL :10-16TONS
2.40GP FCL: 20-26TONS
3.40HQ FCL:22 TONS or 26 TONS

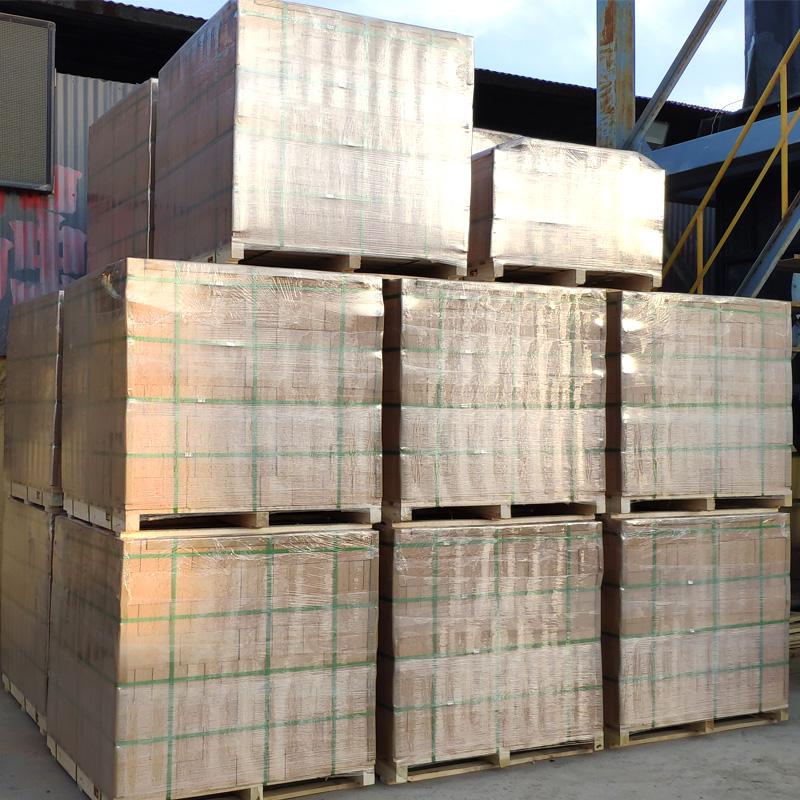

The above quantity without pallet ,the goods will be sent within 7-15days after receiving your order.
Gongyi Yuying Refractory Co., Ltd FAQ
We can provide samples for free and charge shipping.
1. What is your MOQ?
Our product MOQ is 10 kg.
2. What kind of software package will we use?
25 kg plastic bags can also be customized.
3. What is the delivery time?
1*20 GP container takeS about 3 to 5 days.
4. Can you give me a discount?
Yes, we can negotiate
5. Can you give me advice based on the information we describe?
Of course, our mission is to provide you with professional services.
High alumina brick is one of the indispensable basic refractory materials in the upper and middle parts of blast furnace body in iron and steel industry
Common low-creep high-alumina bricks can be used in blast furnace hot blast stoves, as well as other industrial kilns, and can also be made into low-creep high-alumina bricks of different sizes according to specific construction requirements, such as lattice bricks, special-shaped bricks, anchor bricks, etc. , mainly used in industrial kilns in long-term high temperature environments
high alumina refractory bricks is mainly used around the furnace cover, electrode holes and exhaust holes of electric furnaces, and its service life is 1 to 2 times longer than that of silica bricks.
Insulating high alumina refractory bricks mainly refer to refractory products with an aluminum content of more than 48%. They are also called lightweight high-alumina bricks or heat-insulating high-alumina bricks due to their advantages of low bulk density, light weight, and good heat insulation effect. . It is a kind of thermal insulation refractory brick commonly used in high temperature industrial kilns and thermal equipment.
Magnesia alumina bricks use periclase as the main crystal phase and magnesia-alumina spinel as the matrix. They are better in thermal shock resistance than magnesia bricks. In order to improve the thermal shock resistance of magnesia bricks, alumina or alumina is introduced into the ingredients. Bauxite clinker fine powder to form a magnesia-alumina sharp stone matrix, thereby making magnesia-alumina bricks
Magnesia chrome bricks are refractory products with magnesia (MgO) and chromium trioxide (Cr2O3) as the main components, and periclase and spinel as the main mineral components. The main raw materials for the manufacture of magnesia-chrome bricks are sintered magnesia and chromite.
Anti stripping high alumina bricks are referred to as anti-stripping bricks or anti-stripping refractory bricks. Anti-stripping high-alumina bricks are widely used in my country's new dry process kiln, Libore kiln and wet process kiln, including kiln door cover, rising flue, cooling zone, decomposition zone, safety belt, transition zone, coolant rear Walls and side walls and beams with curved ceilings.
Yuying Refractory produces a complete set of refractories for electrolyzers, and the new impermeable bricks are used in conjunction with impermeable castables
High alumina brick is one of the indispensable basic refractory materials in the upper and middle parts of blast furnace body in iron and steel industry
Common low-creep high-alumina bricks can be used in blast furnace hot blast stoves, as well as other industrial kilns, and can also be made into low-creep high-alumina bricks of different sizes according to specific construction requirements, such as lattice bricks, special-shaped bricks, anchor bricks, etc. , mainly used in industrial kilns in long-term high temperature environments
high alumina refractory bricks is mainly used around the furnace cover, electrode holes and exhaust holes of electric furnaces, and its service life is 1 to 2 times longer than that of silica bricks.
Insulating high alumina refractory bricks mainly refer to refractory products with an aluminum content of more than 48%. They are also called lightweight high-alumina bricks or heat-insulating high-alumina bricks due to their advantages of low bulk density, light weight, and good heat insulation effect. . It is a kind of thermal insulation refractory brick commonly used in high temperature industrial kilns and thermal equipment.
Magnesia alumina bricks use periclase as the main crystal phase and magnesia-alumina spinel as the matrix. They are better in thermal shock resistance than magnesia bricks. In order to improve the thermal shock resistance of magnesia bricks, alumina or alumina is introduced into the ingredients. Bauxite clinker fine powder to form a magnesia-alumina sharp stone matrix, thereby making magnesia-alumina bricks
Magnesia chrome bricks are refractory products with magnesia (MgO) and chromium trioxide (Cr2O3) as the main components, and periclase and spinel as the main mineral components. The main raw materials for the manufacture of magnesia-chrome bricks are sintered magnesia and chromite.
Anti stripping high alumina bricks are referred to as anti-stripping bricks or anti-stripping refractory bricks. Anti-stripping high-alumina bricks are widely used in my country's new dry process kiln, Libore kiln and wet process kiln, including kiln door cover, rising flue, cooling zone, decomposition zone, safety belt, transition zone, coolant rear Walls and side walls and beams with curved ceilings.
Yuying Refractory produces a complete set of refractories for electrolyzers, and the new impermeable bricks are used in conjunction with impermeable castables
High alumina brick is one of the indispensable basic refractory materials in the upper and middle parts of blast furnace body in iron and steel industry
Common low-creep high-alumina bricks can be used in blast furnace hot blast stoves, as well as other industrial kilns, and can also be made into low-creep high-alumina bricks of different sizes according to specific construction requirements, such as lattice bricks, special-shaped bricks, anchor bricks, etc. , mainly used in industrial kilns in long-term high temperature environments
high alumina refractory bricks is mainly used around the furnace cover, electrode holes and exhaust holes of electric furnaces, and its service life is 1 to 2 times longer than that of silica bricks.
Insulating high alumina refractory bricks mainly refer to refractory products with an aluminum content of more than 48%. They are also called lightweight high-alumina bricks or heat-insulating high-alumina bricks due to their advantages of low bulk density, light weight, and good heat insulation effect. . It is a kind of thermal insulation refractory brick commonly used in high temperature industrial kilns and thermal equipment.
Magnesia alumina bricks use periclase as the main crystal phase and magnesia-alumina spinel as the matrix. They are better in thermal shock resistance than magnesia bricks. In order to improve the thermal shock resistance of magnesia bricks, alumina or alumina is introduced into the ingredients. Bauxite clinker fine powder to form a magnesia-alumina sharp stone matrix, thereby making magnesia-alumina bricks
Magnesia chrome bricks are refractory products with magnesia (MgO) and chromium trioxide (Cr2O3) as the main components, and periclase and spinel as the main mineral components. The main raw materials for the manufacture of magnesia-chrome bricks are sintered magnesia and chromite.
Anti stripping high alumina bricks are referred to as anti-stripping bricks or anti-stripping refractory bricks. Anti-stripping high-alumina bricks are widely used in my country's new dry process kiln, Libore kiln and wet process kiln, including kiln door cover, rising flue, cooling zone, decomposition zone, safety belt, transition zone, coolant rear Walls and side walls and beams with curved ceilings.
Yuying Refractory produces a complete set of refractories for electrolyzers, and the new impermeable bricks are used in conjunction with impermeable castables
