Anti stripping high alumina bricks are referred to as anti-stripping bricks or anti-stripping refractory bricks. Anti-stripping high-alumina bricks are widely used in my country's new dry process kiln, Libore kiln and wet process kiln, including kiln door cover, rising flue, cooling zone, decomposition zone, safety belt, transition zone, coolant rear Walls and side walls and beams with curved ceilings.

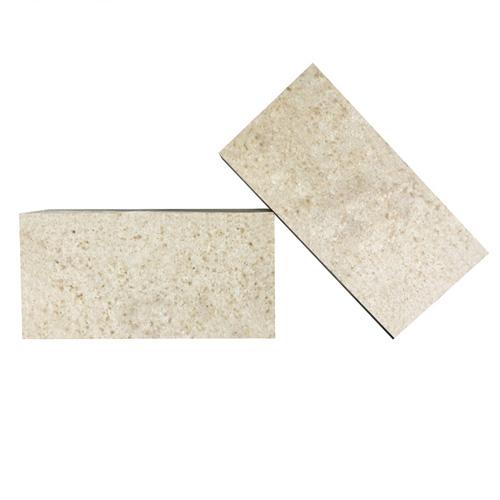

Anti stripping high alumina bricks refractory bricks
Anti-stripping high alumina bricks use high alumina bauxite clinker as the main raw material, introduce a small amount of ZrO2 (due to the phase transition between monoclinic and tetragonal ZrO2, which can improve the thermal shock stability of refractory bricks), add a certain amount of compound Binder and additives, by controlling the particle gradation of mud, the refractory products obtained by molding and high-temperature firing become anti-stripping high-alumina bricks.
Item |
Index |
Al2O3%≥ |
70 |
ZrO2% |
6-10 |
Refractoriness℃ |
1790 |
Bulk densityg/cm3 |
2.5-2.6 |
Apparent porosity% |
20-23 |
Normal temperature compressive strength MPa |
55 |
0.2MPa Load softening start temperature |
1470 |
Thermal shock stability(1100cooling water),time |
35 |
Specifications of anti stripping high alumina bricks
The standard size of anti-stripping high alumina bricks is 230*114*65mm, and other sizes can be customized according to the drawings.
The performance principle of anti-peeling high alumina brick
The anti-peeling mechanism of high alumina bricks is due to the fact that after the introduction of ZrO2, its microstructural characteristics determine its anti-peeling properties.
(1) There are obvious micro-cracks around the ZrO2 aggregate, and the aggregate has obvious gap peeling with the surrounding corundum and mullite.
(2) The well-developed ZrO2 aggregates are columnar and form a layered distribution in space. There are small slits between ZrO2, the size of which is only 1-5 μm, forming a channel structure. This structure is superimposed with superimposed layers, tortuous and tortuous, which is conducive to stress transmission and dispersion.
(3) Mullite is well-developed and fibrous, interlaced with ZrO2 and corundum in space, forming a composite reinforced structure. Obviously, when ZrSiO4 decomposes at high temperature, it reacts with surrounding A12O3 to generate ZrO2 and mullite. The existence of ZrO2 crystals prevents the growth of fibrous mullite crystals and platy corundum, and is wrapped by them, so it is surrounded by ZrO2. Chaos state.
(4) The petrographic analysis shows that the structure of corundum and mullite is interlaced, ZrO2 is intercalated, and there are microcracks around, and the larger ZrO2 crystal itself and its surroundings have radial microcracks.
The use of anti-stripping high-alumina bricks
Anti-stripping high alumina bricks are referred to as anti-stripping bricks or anti-stripping refractory bricks. Anti-stripping high-alumina bricks are widely used in my country's new dry process kiln, Libore kiln and wet process kiln, including kiln door cover, rising flue, cooling zone, decomposition zone, safety belt, transition zone, coolant rear Walls and side walls and beams with curved ceilings.
Advantages and characteristics of Anti stripping high alumina bricks
(1) High refractory temperature.
(2) 0.2MPA load softening temperature is greater than 1500 degrees.
(3) Excellent thermal shock resistance, more than 25 times of water cooling at 1100 degrees.
(4) High compressive strength at room temperature, greater than 60MPA.
(5) The apparent porosity is low and the volume is stable at high temperature.
(6) Excellent anti-peeling performance.
(7) Good chemical resistance.
