Magnesia chrome bricks are refractory products with magnesia (MgO) and chromium trioxide (Cr2O3) as the main components, and periclase and spinel as the main mineral components. The main raw materials for the manufacture of magnesia-chrome bricks are sintered magnesia and chromite.

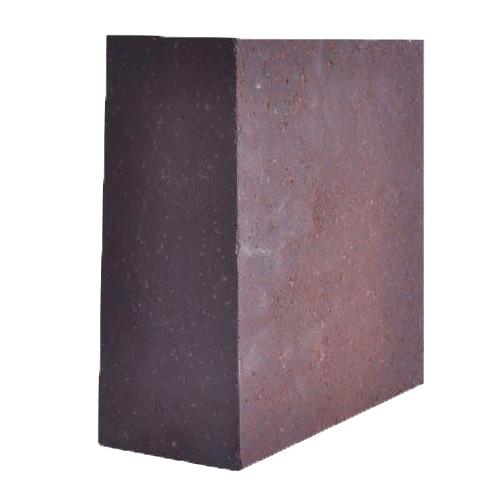

Magnesia chrome brick for glass kiln
Magnesia chrome bricks are refractory products with magnesia (MgO) and chromium trioxide (Cr2O3) as the main components, and periclase and spinel as the main mineral components. The main raw materials for the manufacture of magnesia-chrome bricks are sintered magnesia and chromite.
Magnesia chrome bricks are mainly used in the metallurgical industry, such as constructing open hearth furnace tops, electric furnace tops, refining furnaces outside the furnace and various non-ferrous metal smelting furnaces. The high-temperature part of the furnace wall of the ultra-high-power electric furnace adopts fused-cast magnesia-chrome bricks, the high-erosion area of the refining furnace outside the furnace adopts magnesia-chrome bricks made of synthetic materials, and the high-erosion areas of non-ferrous metal smelting furnaces are made of fused-cast magnesia-chrome bricks and synthetic materials. Magnesia chrome brick. In addition, magnesia-chrome bricks are also used in the firing zone of cement rotary kilns and the regenerators of glass kilns.
Index |
DWC-12 |
DM-9B |
DM-9A |
DMC-6 |
DM-4 |
MgO%≥ |
60 |
70 |
70 |
75 |
80 |
SiO2≤ |
3.2 |
3.0 |
2.8 |
2.8 |
2.5 |
Cr2O3≥ |
12 |
9 |
9 |
6 |
4 |
Apparent porosity%≤ |
19 |
19 |
19 |
18 |
18 |
Bulk density≥ |
3.0 |
2.98 |
2.98 |
2.95 |
2.93 |
Normal temperature compressive strength≥ |
35 |
40 |
40 |
40 |
40 |
0.2Mpasoftening temperature under load(T0.6)≥ |
1580 |
1580 |
1600 |
1600 |
1600 |
Thermal stability 950℃(air cooling) |
80 |
80 |
80 |
80 |
80 |
Features of magnesia chrome brick:
High refractoriness
High temperature strength
Strong resistance to alkaline slag corrosion
Excellent thermal stability
It also has certain adaptability to acid slag.
