The high-alumina bricks are mainly used in the regenerator of the hot blast stove. The lattice bricks with a certain structure are arranged in an orderly manner, and the upper and lower through holes of the lattice bricks can allow the gas to pass through.
High alumina bricks for hot blast stove

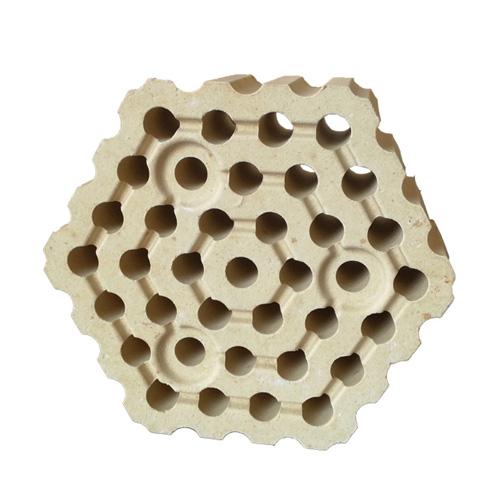

High Alumina Checker Brick are mainly used in the regenerator of the hot blast stove. The lattice bricks with a certain structure are arranged in an orderly manner, and the upper and lower through holes of the lattice bricks can allow the gas to pass through. According to the technical requirements of different temperature areas, siliceous lattice bricks, clay bricks, etc. are generally used. In some hot blast stoves, high alumina bricks, mullite bricks, sillimanite bricks, etc. are also selected.
The function of the hot blast stove is to heat the cold air sent by the blower to the blast furnace into hot air, and then the hot air is sent to the blast furnace through the hot air pipe for combustion reaction. The blast furnace hot blast stove has a firing period and an air supply period, and the two working periods are rotated periodically. During the burning period, the high-temperature flue gas after combustion passes through the holes of the checkered bricks of the hot blast stove and transfers the heat to the checkered bricks; in the air supply period, the cold air from the blower enters the hot blast stove and is heated by the checkered bricks into hot air. It is sent to the blast furnace through the hot air pipe.
Features of High Alumina Checkered Bricks:
1. There are a plurality of through lattice holes parallel to the side surfaces, and positioning protrusions and positioning grooves located on the two parallel surfaces.
2. Good volume stability, excellent high temperature load creep performance, high density and low porosity. Modern blast furnace hot blast stoves usually adopt a checkered brick regenerator structure.
term |
Specified value |
|||||
LZ-80 |
LZ-75 |
LZ-65 |
LZ-55 |
LZ-48 |
||
Al2O3%≥ |
80 |
75 |
65 |
55 |
48 |
|
Fe2O3≤ |
2 |
2.5 |
2.5 |
2.6 |
2.8 |
|
Bulk density g/cm2 |
2.6 |
2.5 |
2.4 |
2.3 |
2.2 |
|
MpaLoad softening start temperature ℃≥ |
1550 |
1510 |
1460 |
1420 |
1400 |
|
Heating permanent line rate of change/% |
(1500℃×2h) |
0.1~-0.4 |
- |
|||
(1450℃×2h) |
0.2~-0.4 |
0.1~-0.4 |
0.1~-0.4 |
|||
Apparent porosity/%≤ |
21 |
22 |
23 |
24 |
26 |
|
Normal temperature compressive strength/MPa≥ |
80 |
70 |
60 |
50 |
35 |
High alumina brick is one of the indispensable basic refractory materials in the upper and middle parts of blast furnace body in iron and steel industry
Common low-creep high-alumina bricks can be used in blast furnace hot blast stoves, as well as other industrial kilns, and can also be made into low-creep high-alumina bricks of different sizes according to specific construction requirements, such as lattice bricks, special-shaped bricks, anchor bricks, etc. , mainly used in industrial kilns in long-term high temperature environments
high alumina refractory bricks is mainly used around the furnace cover, electrode holes and exhaust holes of electric furnaces, and its service life is 1 to 2 times longer than that of silica bricks.
Insulating high alumina refractory bricks mainly refer to refractory products with an aluminum content of more than 48%. They are also called lightweight high-alumina bricks or heat-insulating high-alumina bricks due to their advantages of low bulk density, light weight, and good heat insulation effect. . It is a kind of thermal insulation refractory brick commonly used in high temperature industrial kilns and thermal equipment.
Magnesia alumina bricks use periclase as the main crystal phase and magnesia-alumina spinel as the matrix. They are better in thermal shock resistance than magnesia bricks. In order to improve the thermal shock resistance of magnesia bricks, alumina or alumina is introduced into the ingredients. Bauxite clinker fine powder to form a magnesia-alumina sharp stone matrix, thereby making magnesia-alumina bricks
Magnesia chrome bricks are refractory products with magnesia (MgO) and chromium trioxide (Cr2O3) as the main components, and periclase and spinel as the main mineral components. The main raw materials for the manufacture of magnesia-chrome bricks are sintered magnesia and chromite.
Anti stripping high alumina bricks are referred to as anti-stripping bricks or anti-stripping refractory bricks. Anti-stripping high-alumina bricks are widely used in my country's new dry process kiln, Libore kiln and wet process kiln, including kiln door cover, rising flue, cooling zone, decomposition zone, safety belt, transition zone, coolant rear Walls and side walls and beams with curved ceilings.
Yuying Refractory produces a complete set of refractories for electrolyzers, and the new impermeable bricks are used in conjunction with impermeable castables
