Coke furnace silicon bricks are mainly used in the heat storage room, oblique road, charcoal room, combustion room, top of the furnace, and bottom of the furnace.
Item NO.:
YYH-008Payment:
T/TProduct Origin:
CHINALead Time:
7-15The main component of silica brick :
Silica refractory brick is a refractory product with silicon dioxide as its main component and its content of more than 93%. It uses quartz rock as raw materials, adds mineralizers and binding agents, and is made at high temperatures at high temperatures. Its mineral composition is Sylphy, and a small amount of residual quartz and high -temperature glass are coexist. For coke furnaces, hot air furnaces, glass kiln, etc.
Silica brick are acidic refractory materials, strong anti -acid residue erosion capacity, load weight softening temperature is as high as 1670 degrees, high temperature volume is stable, long -term use does not deform, and silicon dioxide content is more than 94%. Thermal equipment lining.
The main indicators of Silica bricks:
project |
JG-94 |
|||
Bottom of the furnace |
Stove wall |
Other parts |
||
SiO2% |
≥94.5 |
≥94.0 |
||
Al2O3% |
≤1.2 |
≤1.5 |
||
Fe2O3% |
≤1.2 |
≤1.5 |
||
CaO% |
≤3.0 |
≤3.0 |
||
Na2O-K2O% |
≤0.35 |
≤0.35 |
||
Apparent porosity(%) |
≤22 |
≤24 |
||
Density(g/cm3) |
≤2.33 |
≤2.34 |
||
Normal temperature resistance intensity(Mpa) |
≥40 |
≥35 |
≥28 |
|
0.2Mpa Heavy softening start temperature(℃) |
≥1650 |
|||
Heating permanent change rate(%)1450℃×2h |
0~0.2 |
|||
Residual quartz stone |
≤1.5 |
|||
Thermal expansion rate |
≤1.28 |
≤1.30 |

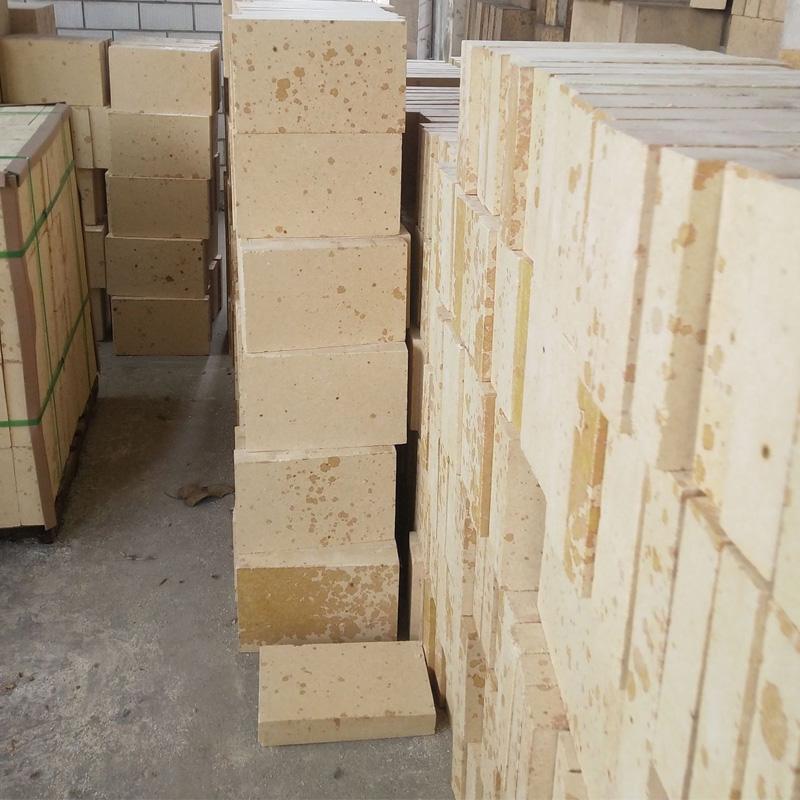

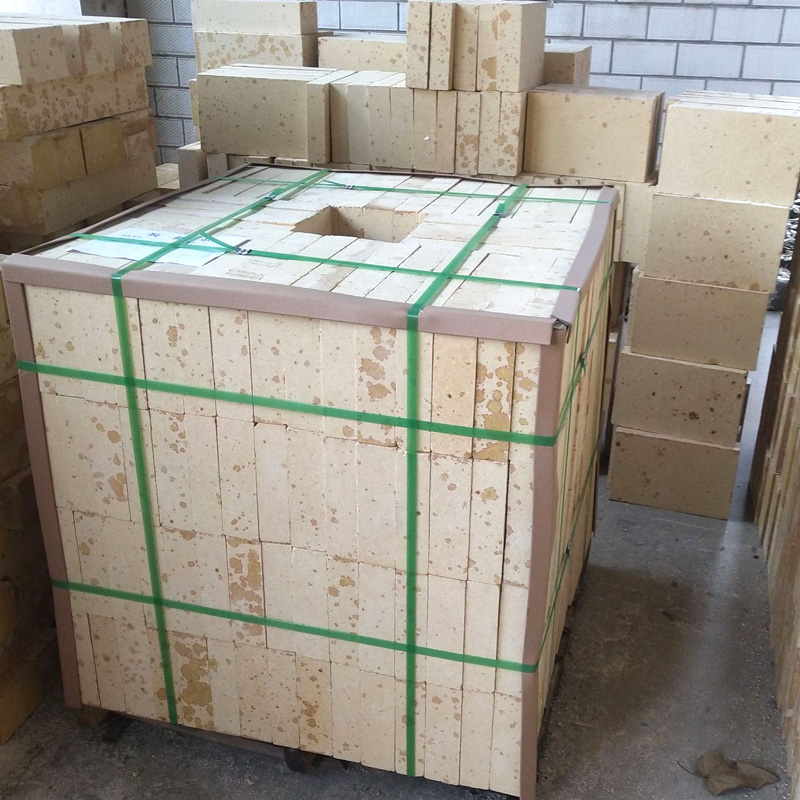

Silica brick pictures:
Advantages of silica bricks:
SiO2≥94%
Long work time
Anti -high temperature
Zero expansion
Punch
Strong anti -acid slag erosion ability
High softness temperature of the lotus
High temperature volume stable
The purpose of silica bricks:
Coke furnace silicon bricks are mainly used in the heat storage room, oblique road, charcoal room, combustion room, top of the furnace, and bottom of the furnace.

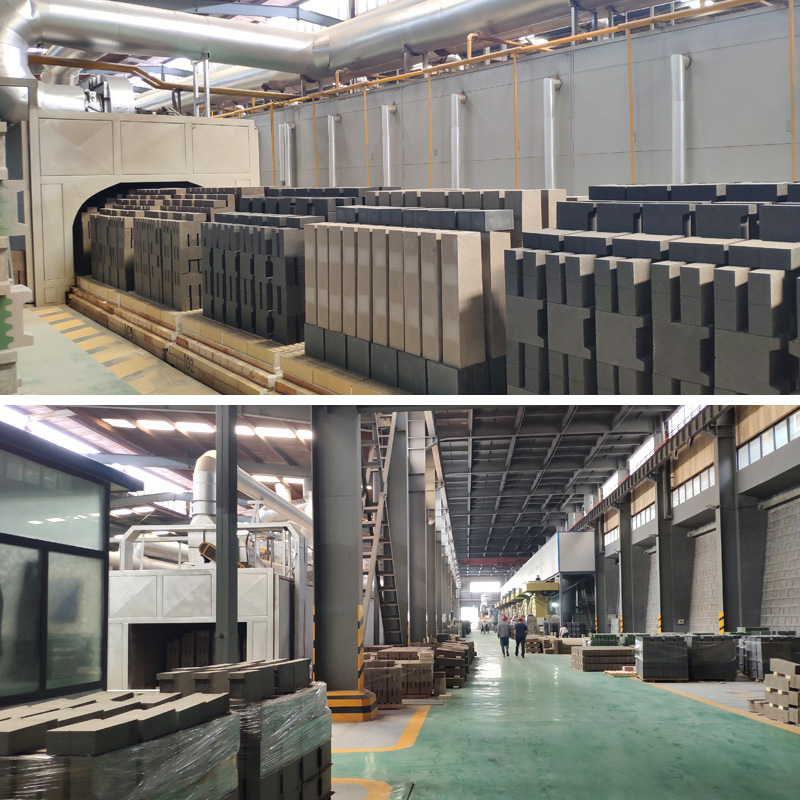

Silica bricks: refractory brick manufacturer factory equipment:
Silica brick manufacturer according to your requirements shipping :
1.20GP FCL :10-16TONS
2.40GP FCL: 20-26TONS
3.40HQ FCL:22 TONS or 26 TONS
The above quantity without pallet ,the goods will be sent within 7-15days after receiving your order.
Gongyi Yuying Refractory Co., Ltd FAQ
We can provide samples for free and charge shipping.
1. What is your MOQ?
Our product MOQ is 10 kg.
2. What kind of software package will we use?
25 kg plastic bags can also be customized.
3. What is the delivery time?
1*20 GP container takeS about 3 to 5 days.
4. Can you give me a discount?
Yes, we can negotiate
5. Can you give me advice based on the information we describe?
Of course, our mission is to provide you with professional services.
6. What is the shipping method?
Shipping, air, express. International train
7. What is the type of your company?
We are a Manufacturing & Trading Combo.
