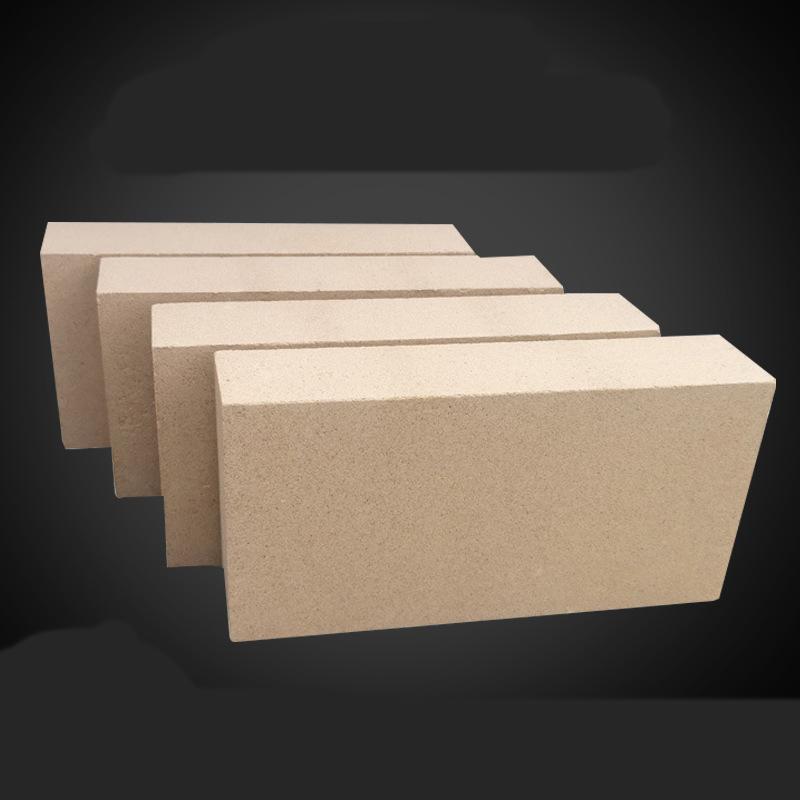

The Al2O3 content of clay heat Clay insulating refractory bricks is generally more than 40%, and the Fe2O3 content is less than 2.0-2.5%. The clinker in the ingredients is 65-85%, and the combined clay is 35-15%. The crushed bonded clay and the finely ground clinker are mixed and milled, and then mixed with the granular clinker to make semi-dry mud, high pressure molding, and sintering at about 1400 ℃, with good performance.
Physical and chemical indicators of clay insulating refractory bricks
The Al2O3 content of clay insulating refractory bricks is generally more than 40%, and the Fe2O3 content is less than 2.0-2.5%. The clinker in the ingredients is 65-85%, and the combined clay is 35-15%. The pulverized bound clay and the finely ground clinker are mixed and ground, and then mixed with the granular clinker to make semi-dry mud, high pressure molding, and sintering at about 1400 ℃, with good performance. Clay bricks are weakly acidic at high temperatures. Lightweight clay heat insulating brick is a refractory material with high porosity, low bulk density and low thermal conductivity. Clay heat insulating refractory material is also called lightweight refractory material.
The characteristics of clay insulating refractory bricks are high porosity, generally 40%-85%; low bulk density below 1.5g/cm3; low thermal conductivity, generally below 1.0W (m.K). Insulation material can reduce the heat dissipation loss of the kiln, save energy, and reduce the quality of thermal equipment. The thermal insulation refractory material has poor mechanical strength, wear resistance and slag corrosion resistance, and is not suitable for the load-bearing structure of the kiln and direct contact with slag, charge, molten metal and other parts.
Index |
NG-1.0 |
NG-0.9 |
NG-0.8 |
NG-0.7 |
NG-0.6 |
Bulk density g/cm3≤ |
1.0 |
0.9 |
0.8 |
0.7 |
0.6 |
Normal temperature compressive strength,MPa CCS≥ |
2.9 |
2.4 |
2.4 |
1.9 |
1.4 |
Thermal Conductivity(350±25℃)w/m.k≤ |
0.50 |
0.40 |
0.35 |
0.35 |
0.25 |
The reburn line changes not more than2%/℃ |
1350 |
1300 |
1250 |
1250 |
1200 |
Characteristics of clay insulating refractory bricks:
high strength
good thermal shock stability
small change in reburning line
small thermal conductivity
Fireclay bricks are classified as weak acid refractories. Due to the large fluctuation range of chemical composition, different production methods, and differences in firing temperature, the properties of clay bricks change greatly.We can produce all kinds of Fireclay bricks according to customers' requirements
Fireclay bricksis suitable for supporting hot blast stoves of large, medium and small blast furnaces
low porosity clay bricks are mainly used in the regenerators of glass kilns. They can also be used in blast furnaces and hot blast furnaces in the steel industry; cement kilns in the building materials industry; chemical kilns in the chemical industry as kiln linings
The refractoriness of clay bricks is comparable to that of silica bricks, up to 1690~1730℃, but the softening temperature under load is more than 200℃ lower than that of silica bricks. Because in addition to the high refractory mullite crystal, the clay brick also contains nearly half of the low melting point amorphous glass phase.
