The heavy parts of the chrome-zirconium mullite composite bricks are made of high-purity sintered mullite, high-purity chromium oxide, high-purity zirconia, and Guangbai mud as the main raw materials, and the light part of the raw materials are made of 47 mullite, kyanite, Bleaching beads, coke gemstones and Guangxi white mud are the main raw materials

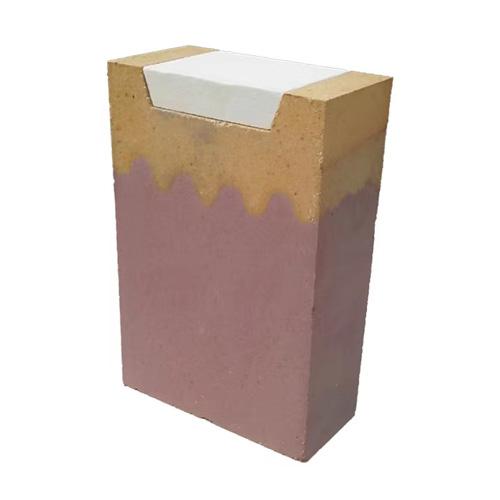

Chrome zirconium mullite composite brick for rotary kiln
The heavy parts of the chrome zirconium mullite composite bricks are made of high-purity sintered mullite, high-purity chromium oxide, high-purity zirconia, and broad white mud as the main raw materials, and the light part of the raw materials are made of 47 mullite, kyanite, Bleaching beads, coke gemstones, and Guangxi white mud are the main raw materials. When forming, a separator is set in the middle of the mold, and heavy materials and light materials are added at both ends. The finished products made by high pressure molding and high temperature sintering are widely used in environmental protection hazards. The waste disposal project is 2-6m from the feed end of the rotary kiln.
product name |
Chrome zirconium corundum composite brick |
|
chemical composition |
Al2O3 |
≥60 |
Cr2O3+ZrO2 |
≥5 |
|
Bulk density (g/cm3) |
≥2.6 |
|
Apparent porosity(%) |
≤17 |
|
Compressive strength(MPa) |
≥80 |
|
0.2MPasoftening temperature under load(℃) |
≥1650 |
|
Thermal shock stability,1100℃ |
≥15 |
Chromium zirconium mullite composite bricks have the properties of low apparent porosity, low thermal conductivity, low density, resistance to spalling, hot acid slag and acid gas erosion.
Corundum bricks are mainly used in iron-making blast furnaces and blast furnace hot blast furnaces, refining furnaces outside steel-making furnaces, sliding water heaters, glass melting furnaces and petrochemical industrial furnaces, etc.
The heavy part of the raw materials for the chrome zirconium corundum composite brick is sintered tabular corundum, high-purity chromium oxide, high-purity zircon, and Guangxi white cement.As the main raw material, the light part of the raw material is made of 47 mullite, kyanite, floating beads and coke gemstones as the main raw materials. During molding, a separator is set in the middle of the mold, and heavy materials and light materials are added at both ends. After high pressure molding , finished products made of high temperature sintering.
Chrome corundum brick refers to corundum refractory products containing Cr2O3. At high temperature, Cr2O3 and Al2O3 form a continuous solid solution, so the high temperature performance of chromium corundum products is better than that of pure corundum products. Chromium corundum products are widely used, and the content of Cr2O3 is mostly in the range of 9% to 15%.
Brown corundum refractory brick is made of fused corundum as the main raw material. It is formed by high pressure and fired at high temperature. It has high thermal shock stability, low porosity, low expansion, good resistance to melt vapor and gas erosion, and excellent oxidation resistance. Dimensionally accurate advantages.
The chemical composition of bauxite is mainly Al2O3, SiO2, Fe2O3, TO2, accounting for about 95% of the total composition, and the secondary components are CaO, MgO, K2O, Na20, S, MnO2 organic matter and trace components Ga, Ge, etc.
