What is spray refractory ?

What is spray refractory ?

Refractory spray paint are amorphous Refractory that are constructed by mechanical spraying using pneumatic tools.

A bulk material made of clay clinker as raw material, mixed with various micro-powder additives and cement as binder, as the protection layer of the inner surface of blast furnace and hot blast furnace shell, and the working lining of blast furnace hearth, gas outlet pipe and dust collector.

It is a kind of refractory mixture which is sprayed by cyclone spraying machine with spraying method. It is composed of refractory aggregate, refractory powder, water, binder, mineralizer, plasticizer and combustion aid.

Refractory spraying coating/gunning refractories  construction is convenient, in the kiln lining of the use of more and more types. There are also many kinds of products on the market.

The refractory spraying coating is divided into dry method and wet method. The dry method includes:

What is wet spraying?

The Refractory is mixed in the mixing system of the spraying machine, and sent to the nozzle of the spray gun by hydraulic pump through a high-pressure material pipe.

What are the technical characteristics of wet spraying?

No fixed frame, no abrasives;

Can form a dense construction body, excellent construction effect;

Quick and convenient construction, high efficiency;

Very low dust, very low material rebound loss;

High temperature can also be construction;

High ground can be constructed;

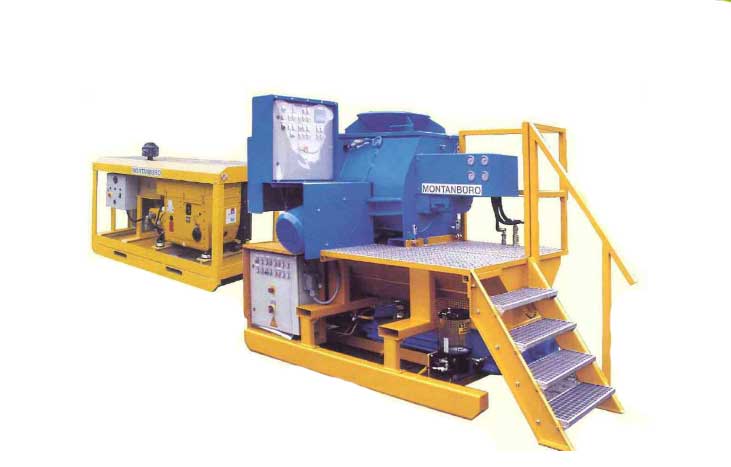

Wet spraying equipment and process:

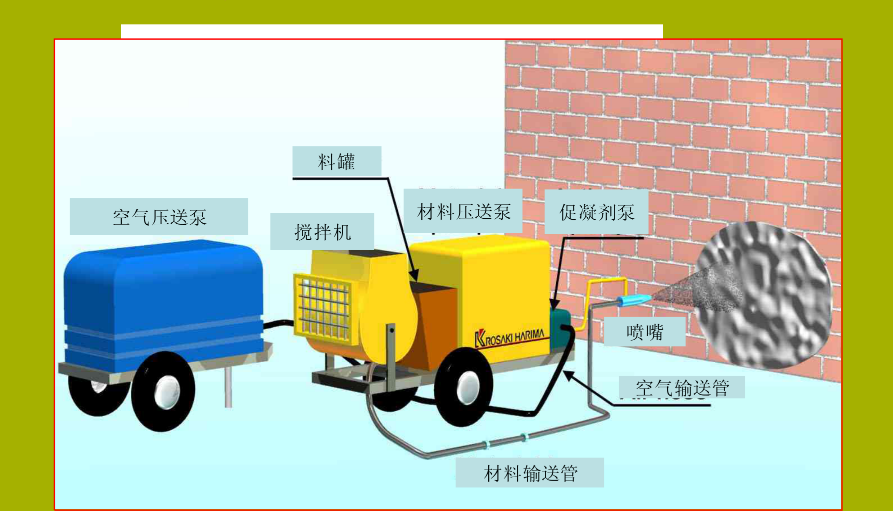

Equipment drawings

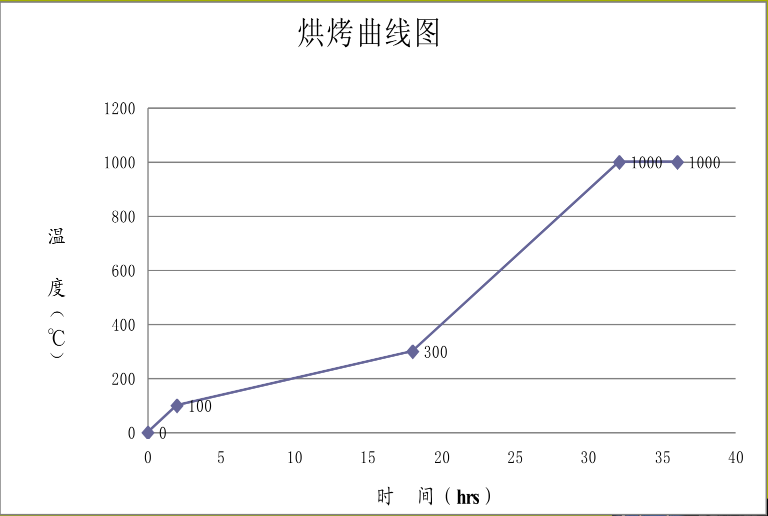

Typical wet spray coating indicators:

What types of refractory coatings are available?

It is mainly used for lining of up pipe and down pipe of blast furnace, and it can also be used in preheater of active lime rotary kiln.

 Bauxite-based coatings, aluminum content will be high, high refractory, mainly used in blast furnaces or hot blast furnace lining.

Silicon carbide spray coating, mainly used in the main ditch lining hot metal, this material adhesion rate, bonding strength, corrosion resistance, erosion resistance, good thermal shock resistance.

 Corundum coating can be used in blast furnace. The lining of the furnace body is subjected to mechanical erosion and thermal shock of dusty gas flow, at the same time by the gas alkali metal elements and other elements of chemical erosion, therefore, this part of the material must be high wear resistance, good corrosion resistance corundum spray paint.

The mullite coating is made of mullite, white corundum and sub-white corundum as the main raw materials, pure calcium aluminate cement 71 # , reusing micro-powder technology, adding spodumene, andalusite, complex phosphate water reducer and organic fiber, it is suitable for lining of blast furnace.

The magnesia gunning material has the characteristics of high refractoriness and good alkali resistance, and is widely used in electric furnace, converter, RH Refining Furnace, ladle, Tundish and other thermal equipment.

 The magnesia-calcareous spray coating can resist the secondary pollution of molten steel and absorb the impurity elements and their compounds to some extent.

 Compared with magnesia-carbon spray paint, magnesia-carbon spray paint has the advantages of corrosion resistance, erosion resistance and long service life.

The wet refractory spraying coating is mainly applied by wet spraying coating, which mainly consists of light-weight spraying coating with light aggregate, perlite, pyrophyllite and Pyrogem as the main raw materials, and plays the role of heat insulation. The heating and cooling time of furnaces can be shortened obviously, the turnover of furnaces can be increased, and the structure of furnaces can be lightened, simplify the steel structure of the furnace body.

Acid-resistant spray paint is mainly composed of sodium silicate and acid-resistant powder, usually used in acid environment of the chimney, flue, reactor lining parts.

Of course, there are some composite fire-resistant spray paint, these spray paint is based on different temperature compound, with the progress of technology, spray paint more and more types, but also more application.

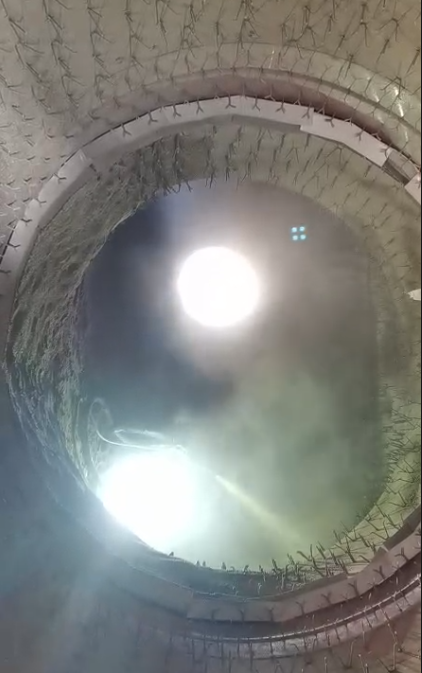

Case Studies:

Refractory spraying coating is mainly used to repair the refractory layer of furnace and lining surface. The refractory spraying coating produced by our factory has strong adhesion and fast solidification speed. Gongyi Yuying Refractory Co. , Ltd. always adhere to scientific innovation, in the field of Refractory developed a number of patented products, Hongfeng Naima always firmly believe that product quality, honesty and trustworthiness-based, welcome new and old customers to negotiate cooperation, win-win cooperation.
